Αντλίες Θερμότητας της Olimpia Splendid. Το 75% της ενέργειας είναι δωρεάν, ανανεώσιμη και καθαρή!
Μονομπλόκ ή διαιρούμενου τύπου αέρα - νερού, ολοκληρωμένες για σύνθετες και απαιτητικές εφαρμογές, με δύο συμπιεστές για πολύ υψηλές θερμοκρασίες ανεξαρτήτως της εξωτερικής θερμοκρασίας και με δοχείο παραγωγής ζεστού νερού χρήσης.
Αντλία θερμότητας για θέρμανση πισίνας;
Εάν αναζητάτε αντλία θερμότητας για θέρμανση πισίνας δείτε Αντλίες θερμότητας για θέρμανση πισίνας ECOplus.
Χαρακτηριστικά αντλιών θερμότητας
Sherpa της Olimpia Splendid
-
Παραγωγή ζεστού νερού χρήσης από 60°C έως 75°C ανάλογα με τον τύπο
-
Καμπύλες λειτουργίας με βάση την εξωτερική θερμοκρασία:
-
δύο για ψύξη
-
δώδεκα για θέρμανση
-
με δυνατότητα να προστεθούν και άλλες
-
-
Επιτρέπουν την ενεργειακή διαχείρηση του κτιρίου για μέγιστη εξοικονόμηση
-
Δύο σημεία ρύθμισης στην ψύξη και δύο σημεία ρύθμισης στην θέρμανση
-
Αντιπαγωτική προστασία
-
Προγραμματιστής ημερήσιος με νυχτερινή λειτουργία για εξοικονόμηση ενέργειας έως και 20%
-
Πλήρης διαχείριση των κύκλων αντιλεγιονέλλας για καταπολέμηση της Νόσου των Λεγεωναρίων
-
Πίνακας έλέγχου θερμοκρασίας περιβάλλοντος και έλεγχου υγρασίας χώρου
-
Ψυκτικό μέσο R410A φιλικό προς το περιβάλλον
Αντλίες θερμότητας Olimpia Splendid
Sherpa:Διαιρούμενη ΑξιόπιστηΟικονομικήΔιαιρούμενη ΕυέλικτηΛειτουργικήαντλία θερμότητας
Αντλία Θερμότητας διαιρούμενου τύπου

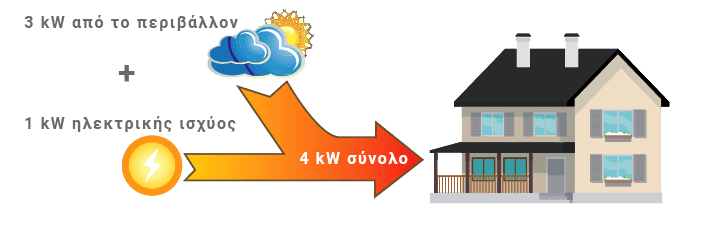

Air-water heat pump which provides the year round runs the annual climate. It does not burn any fossil fuel: capture the energy in the air and multiplies it. Every kW, produces more than 4 thermal energy: 75% of the energy is free, renewable and clean.
Sherpa
Γενικά Χαρακτηριστικά Sherpa Διαιρούμενου Τύπου
It consists of two modules: a condensing high efficiency DC inverter that ensures operation down to -15 °C outside and a hydronic module to be installed internally.
The engineering has made possible to include in the hydronic module the 3-way valve for domestic hot water production reducing the installation time. The reduced forms allow installation inside a kitchen cabinet.
The control contains the most advanced functions taking account of the climatic season, the load demand and adjusting accordingly the compressor frequency.
Features
3-way valve incorporated in the internal module for the deviation of the system water supply to the DHW reservoir: allowing installation
simplification.
Provides DHW with temperatures up to 60°C
DHW Management: Sherpa can manage DHW with extreme flexibility through two management methods: water sensor inserted in the boiler or contact thermostat in the tank.
Climatic curves based on the outside air temperature: two curves are available, one for cooling and one for heating. The climatic curves allow you to change the system temperature according with external climate conditions, adjusting the heat input to the heat requirements of the building in order to obtain energy savings.
Two configurable set points in cooling, Three configurable set points in heating (one of which for DHW): the set points can also be selected by remote contact.
2-stage electric heater: configurable single or double stage which can be activated to support the heat pump, through verification, by electronic
control, of the actual thermal capacity of the heat pump. Each stage is activated in accordance with the real need for thermal power, in order to
optimize electrical consumption.
Daily programmer with night mode: night mode provides energy savings of up to 20%. Complete management
of antilegionella cycles.
Complete management of antilegionella cycles
Refrigerant gas R410A*
* Non hermetically sealed equipment containing fluorinated gas with GWP equivalent 2088
SherpaAquaDueμε δύο συμπιεστές
Sherpa AquaDue
Με δύο συμπιεστές για πολύ υψηλή θερμοκρασία λειτουργίας
The AQUADUE® patented technology thanks to the combination of an air-water cycle with inverter technology and a second stage water-water guarantees the cooling or the heating contemporary to the DHW production at high temperature, indipendently from the outside temperature.
Sherpa AquaDue
Γενικά Χαρακτηριστικά SMART SL Tank In Tank (μονής)
ANTILEGIONELLA CYCLES NOT NECESSARY
DHW UP TO 75°C WITHOUT AUXILIARY RESISTANCES AND INDEPENDENT FROM OUTSIDE TEMPERATURE
BOILER VOLUME REDUCTION
Features
DHW (Domestic Hot Water) production at a high temperature, up to 75 ° C.
DHW management: a group of water-water heat pumps integrated in the indoor unit provides domestic hot water at a high temperature regardless of external weather conditions.
Continuous absolute availablity of DHW: guaranteed by the redundance of the double refrigerating circuit system.
Antilegionella cycles avoidable using the refrigeration cycle at high temperature. 2-stage electric heater: single or double strength activation to support the heat pump through a simple configuration of the electronic control. Each stage is activated according to the actual need of thermal power in order to optimize power consumption.
Configurable points: two set points in cooling mode Three set points in heating mode (one of them for DHW): the set points are also selectable
by remote contact.
Weekly programmer DHW, holidays and daily with night mode.
Climatic curves with outside air temperature sensor: two curves are available, one for cooling and one for heating. Climatic curves allow you to modify system water temperature supply depending on climate conditions, adapting the heat requirements of the building in order to obtain
energy savings.
Refrigerant gas: R410A* for the reversible circuit dedicated to air-conditioning and R134a** for the high temperature circuit dedicated to DHW
production.
* Non hermetically sealed equipment containing fluorinated gas with GWP equivalent 2088
** Non hermetically sealed equipment containing fluorinated gas with GWP equivalent 1430
Functions
SherpaAquaDue Towerμε ενσωματωμένο δοχείο Ζ.Ν.Χ.
Sherpa AquaDue Tower
The AQUADUE® patented technology thanks to the combination of an air-water cycle with inverter technology and a second stage water-water guarantees the cooling or the heating contemporary to the DHW production at high temperature, indipendently from the outside temperature.
Design by S. Ercoli and A. Garlandini
The AQUADUE® system based on a combined cycle system allows:
DHW AND COMFORT AT THE SAME TIME
The two interconnected refrigerator cycles allow the decoupling of the heating/cooling from the DHW production, enabling them to operate in parallel, avoiding thus interruptions in the domestic comfort supply.
75°C DOMESTIC HOT WATER
High temperature DHW storage allows a reduction of the boiler volume up to 30%, to heat bathroom heater radiators and avoids highly energyconsumpting anti-legionella cycles that are normally performed through the use of electrical resistances.
Sherpa AquaDue Tower
Γενικά Χαρακτηριστικά SMART SL Tank In Tank (μονής)
Features
DHW (Domestic Hot Water) production at a high temperature, up to 75 °C in the integrated boiler.DHW management: a group of water-water heat pumps integrated in the indoor unit provides domestic hot water at a high temperature regardless of external weather conditions.
Continuous absolute availablity of DHW: guaranteed by the redundance of the double refrigerating circuit system.
Antilegionella cycles avoidable using the refrigeration cycle at high temperature.
2-stage electric heater: single or double strength activation to support the heat pump through a simple configuration of the electronic control. Each stage is activated according to the actual need of thermal power in order to optimize power consumption.
Configurable points: two set points in cooling mode, three set points in heating mode (one of them for DHW): the set points are also selectable by remote contact.
Weekly programmer DHW, holidays and daily with night mode.
Climatic curves with outside air temperature sensor: two curves are available, one for cooling and one for heating. Climatic curves allow you to modify system water temperature supply depending on climate conditions, adapting the heat requirements of the building in order to obtain energy savings.
Refrigerant gas: R410A* for the reversible circuit dedicated to air-conditioning and R134a** for the high temperature circuit dedicated to DHW production.
150 l integrated high-efficiency boiler
Production of mixed DHW at 40° up to 3,6 days***
* non hermetically sealed equipment containing fluorinated gas with GWP equivalent 2088
** non hermetically sealed equipment containing fluorinated gas with GWP equivalent 1430
*** Qref 2,1 kWh/day for 150 lt boiler according to the EN16147, 2005 rule
Functions
Heating
75°C DHW (Domestic Hot Water)
Cooling + DHW at a high temperature with energy recovery
Heating + DHW at a high temperature
Sherpa Monobloc: H compactαντλία θερμότητας
Sherpa Monoblock
Air-water monobloc heat pump which provides the year round runs the annual climate. It does not burn any fossil fuel: capture the energy in the air and multiplies it. Every kW, produces more than 4 thermal energy: 75% of the energy is free, renewable and clean.
Overview
COMPACT TECHNOLOGY
The engineering of components has made it possible to insert a 3-way valve for the management of Domestic Hot Water. The reduced size allow installation inside a kitchen cabinet.
SMART CONTROL
The control is extremely flexible and the following interfaces can be used:
The programmable thermostat (included as per standard) with easy-toread liquid crystal display. It contains the most advanced functions for controlling the various types of heat pump systems. The operating logic considers the climatic season and the heat load required and consequently adjusts the frequency of the motor on the basis of the difference between outdoor environment temperature and water flow temperature.
The remote control (additional) with possibility of environment temperature and humidity control.
Sherpa Monoblock
Γενικά Χαρακτηριστικά SMART SL Tank In Tank (μονής)
Features
Climatic curves based on outside air temperature:two for cooling and twelve for heating or it’s possible to add the customized climatic curves. The climatic curves allow you to change the system temperature according with external climate conditions, adjusting the heat input to the heat requirements of the building in order to obtain energy savings.
Two configurable set points in cooling,
Two configurable set points in heating.
Anti-freeze protection: managed by the software.
Daily programmer with night mode: night mode provides energy savings of up to 20%. Complete management of antilegionella cycles.
Remote control panel with possibility of environment temperature and humidity control.
Refrigerant gas R410A.*
* Non hermetically sealed equipment containing fluorinated gas with GWP equivalent 2088
Functions
Heating
Domestic hot water up to 60°C
